Green Drain
Green Drain™ 38mm (GD1.5)
$48.55inc GST
In stock
Fits pipe1.5" (38 mm)
NominalDN40
Height28 mm
Flow (Level U)51.55 L/min
SKU: GD 1.5
WaterMark certified
About this product
Product Features
- Allows fluids and debris to flow but nothing back up the drain
- Easy to install no tools required
- Separately Recyclable & made from >60% recyclable materials

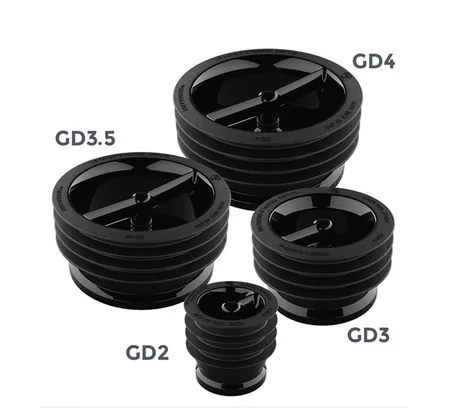

- Available in seven sizes plus two hybrid models
- Ideal for floor waste, sinks, showers, kitchens, HVAC, Refrigeration rooms
- Washable, Replaceable every 12 months
- Prevents pests and pesky fruit flies from coming up through your drain.
- Stops shower smells and drains smells.

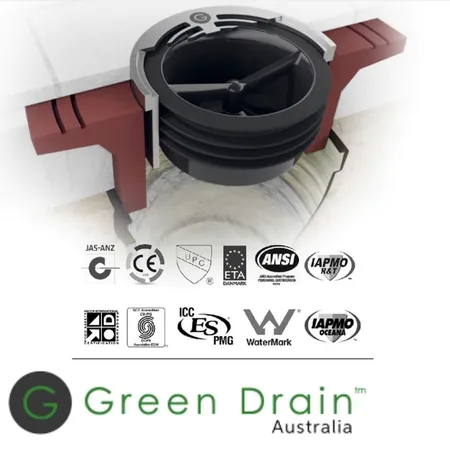

Green Drain™ is the newest and most innovative waterless trap seal on the market.
Where can Green Drain™ Be Used?
Green Drain™ is a suitable drain trap for the following industries:
- Residential - Made to be used on all drains in your home.
- Apartment Blocks - Ideal for Strata Managers looking for a solution in multiple dwellings.
- Commercial Offices
- Hospitals
- Schools & Universities
- Restaurants
- Hotels
- Factories & Warehouses
- Gyms
Specifications
| Model | GD15 |
| Fits pipe | 1.5" (38 mm) |
| Nominal size | DN40 |
| Height | 28 mm |
| Housing | ABS plastic, UV resistant |
| Valve | Silicone rubber sealing skirt |
| Seal | Silicone gasket with four flexible sealing ribs |
| Flow, ASSE 1072 Level C | 24.21 L/min |
| Flow, ASSE 1072 Level U | 51.55 L/min |
| Flow, DTI measured (EN 1253-1) | 0.41 L/s |
| Back-pressure resistance (DTI) | >400 Pa |
| WaterMark | WM-022837 (DN40) |
| Patents | Multiple US and international patents |
Dimension drawing from the Green Drain datasheet. The flow figures printed on the drawing are the earlier datasheet ratings; the specification table lists the current ASSE 1072 Level C and Level U figures.
Source: Green Drain published specifications and WaterMark licence WM-022837. Green Drain is a supplementary trap-seal protection device under WMTS-522:2021 and does not replace the water seal trap.
